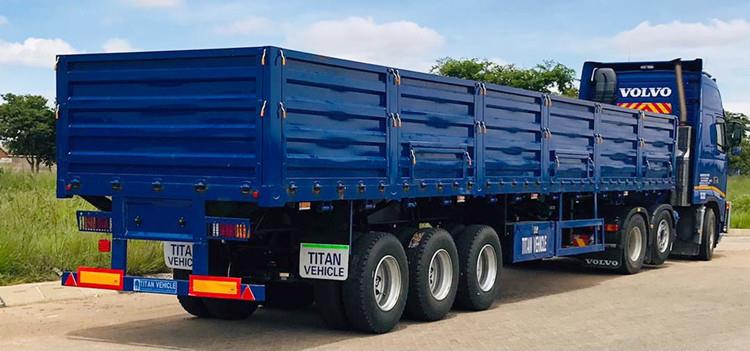

Tri axle grain transport trailer is used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.
Grain transport trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. Tri axle grain trailer for sale is used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the cargo semi trailer.

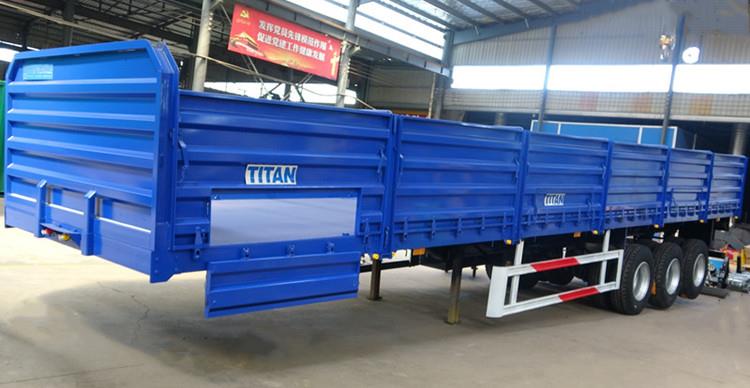

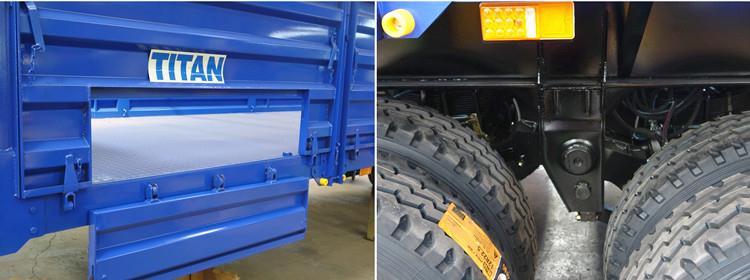

The small door of the tri axle grain trailer for sale facilitates the loading and unloading of grain.

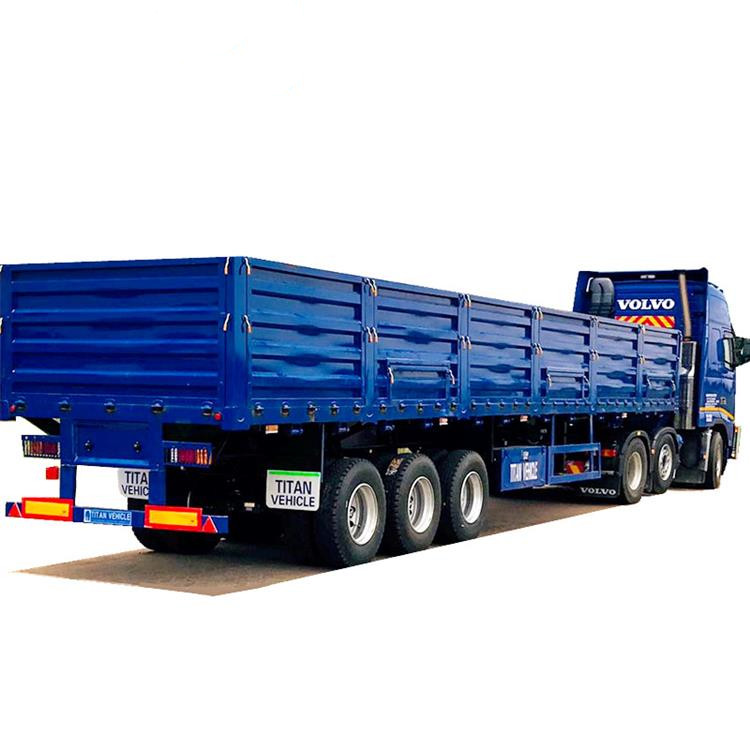

Tri Axle Grain Transport Cargo Semi Trailer for Sale
Tri Axle Grain Transport Cargo Semi Trailer for Sale

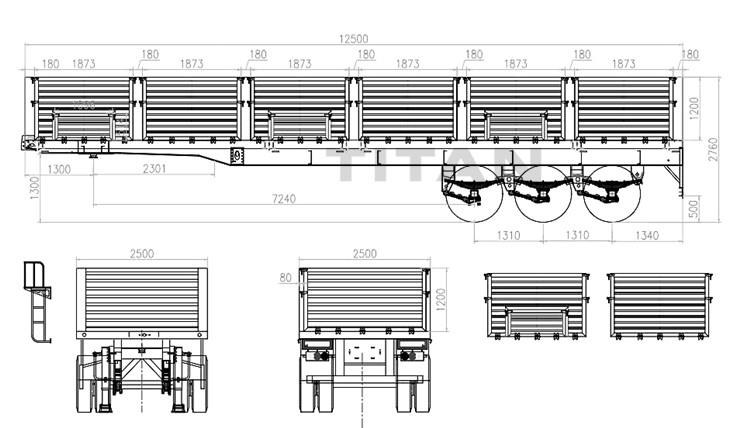

Dimension(mm): 12500x2500x2760mm
Trailer Sides: 1200mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

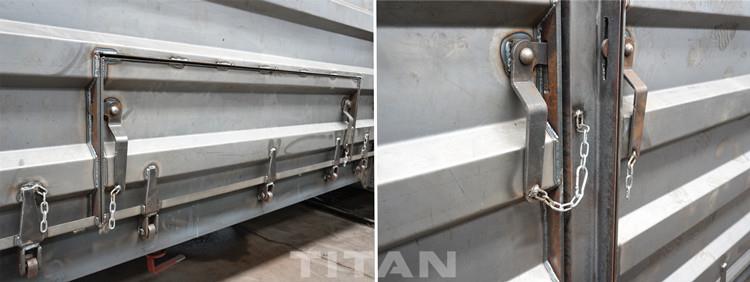

Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. We adopts high strength steel material to manufacture the cargo semi trailer, it can make the cargo semi trailer have a higher loading capacity and a longer service life.
2. We uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. Hight quality side wall, make sure the stable and safety of the loads.
4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
5. To make sure the service life of the tri axle grain trailer for sale, all the spare parts we adopt are world famous brand.
