The China fence semi trailer use to load a wide range of bulk cargo, like sand, bags, poultry etc. Fence semi trailer is very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty bulk cargo. The 3 axle fence trailer for sale can be added with a container turn lock to transport the container.
Fence trailer for sale has a fence structure design. We have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.

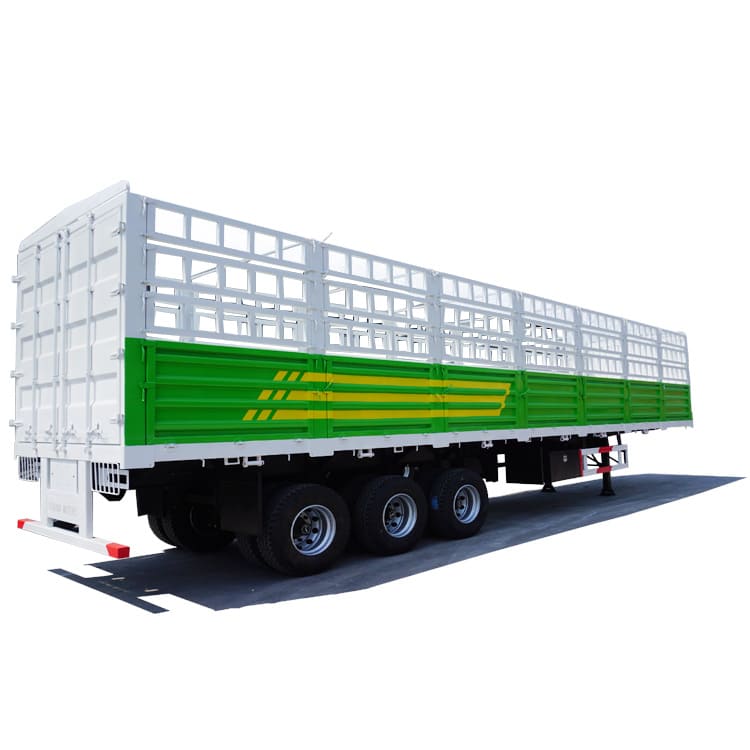

China 3 Axle 60 Ton Fence Semi Trailer for Sale
Dimension(mm): 13000x2600x3550mm
Trailer Sides: 2000mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. We adopts high strength steel material to manufacture the fence semi trailer, it can make the trailer have a higher loading capacity and a longer service life.
2. The semi trailer floor is checker plate, this will keep the bulk cargo more stable, like the bags, or long stuff.
3. To make sure the service life of the semi trailer, all the spare parts we adopt are world famous brand.
4. Hight quality side wall, make sure the stable and safety of the loads.
5. China fence semi trailer price is cheaper than your local market.
