Faw jh5 8x4 tipper price optimize the accelerator, brake, and clutch pedal mechanism, with reasonable position and stroke, moderate force, and improve driving feeling;
At the same time, the Faw tipper price in kenya optimized design of the stabilizer bar to reduce the roll angle.
The service life of large assemblies such as engine, transmission, front axle and rear axle is 1.5 million kilometers; the design and quality inspection standards of more than 10,000 components such as frame, suspension, braking, steering system and suspension system have been comprehensively improved.
Faw Trucks Prices in Kenya | Faw JH5 8X4 Tipper Price in Kenya
Faw Trucks Prices in Kenya | Faw JH5 8X4 Tipper Price in Kenya
Faw Trucks Prices in Kenya | Faw JH5 8X4 Tipper Price in Kenya
Faw Trucks Prices in Kenya | Faw JH5 8X4 Tipper Price in Kenya

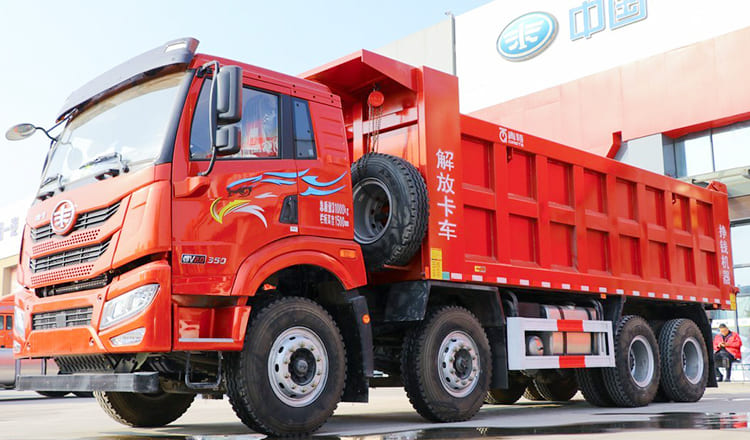

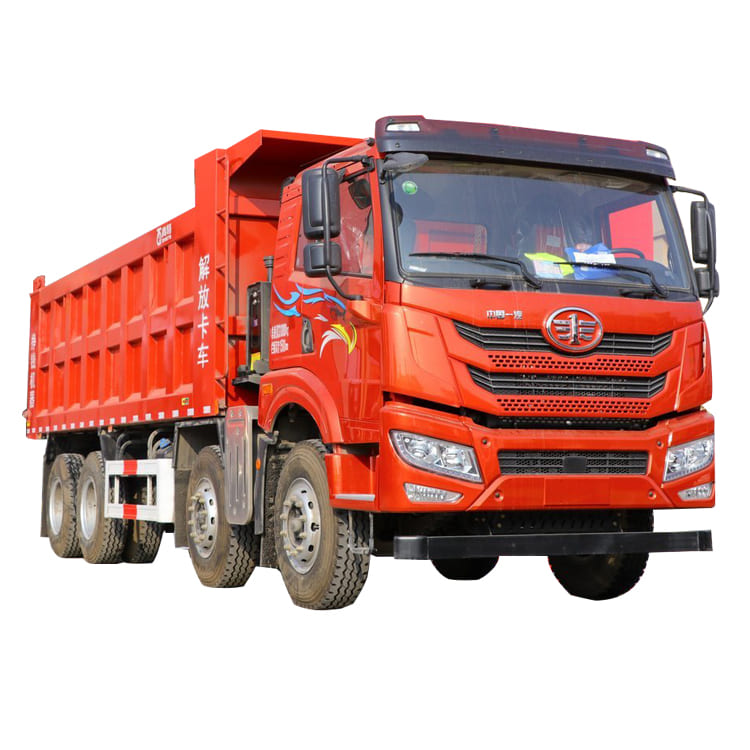

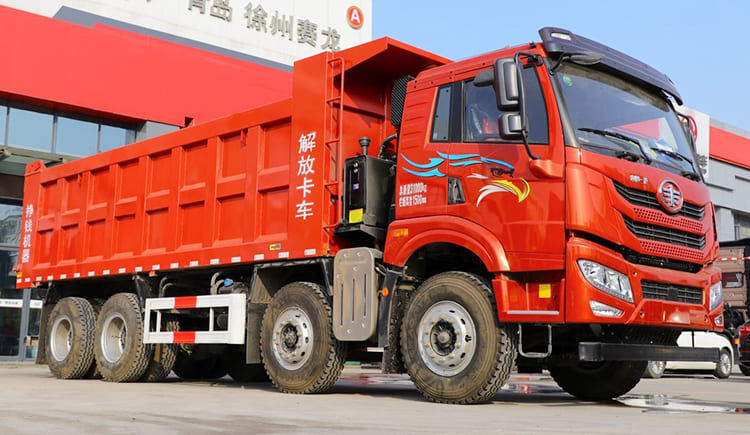

Name: Faw JH5 8X4 Tipper Price
Drive form: 8X4
Wheelbase: 1900+3200+1350mm
Overall Dimension(mm): 9660x2550x3250
Front Track: 2020/2020mm
Rear Track: 1878/1878mm
Vehicle weight: 14.62 tons
Rated load: 16.25 tons
Total mass: 31 tons faw tipper price in kenya
Approach angle: 25 degrees
Departure angle: 37 degrees
Engine
Engine model: Weichai WP8.350E61
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 7.8L faw tipper price in kenya
Maximum horsepower: 350 horsepower
Maximum output power: 257kW
Maximum torque: 1400N m
Maximum torque speed: 1200-1600rpm
Rated speed: 2100rpm faw tipper price in kenya
Engine form: in-line six-cylinder, water-cooled, four-stroke, high-pressure common rail, supercharged and intercooled, EGR

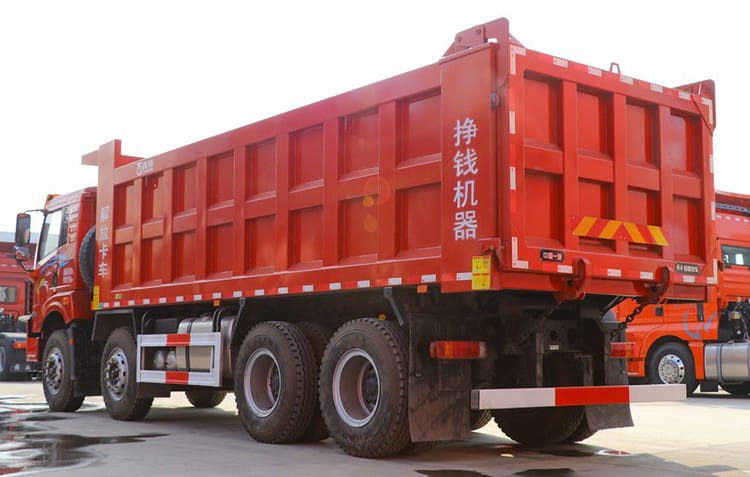

Cargo box
Cargo box length: 6.5 meters
Container width: 2.35 meters
Cargo height: 1.5 meters
Cargo box form: rear flip self-unloading
Gearbox
Gearbox model: FAW Jiefang CA10TAX130M
Forward gear: 10th gear
Number of reverse gears: 2
Fuel tank
Fuel tank capacity: 300L
Chassis
Frame size: 280*80*(8+5)mm
Rear axle description: 435 upgrade punching and welding axle (with inter-wheel differential lock)
Rear axle allowable load: 18000 (two axles) kg
Speed ratio: 5.143
Number of spring pieces: 10/10/10, 12/12/10, 4/4/5, 4/4/10
Tire
Tire specifications: 10.00R20 18PR, 11.00R20 16PR, 11.00R20 18PR
Number of tires: 12
