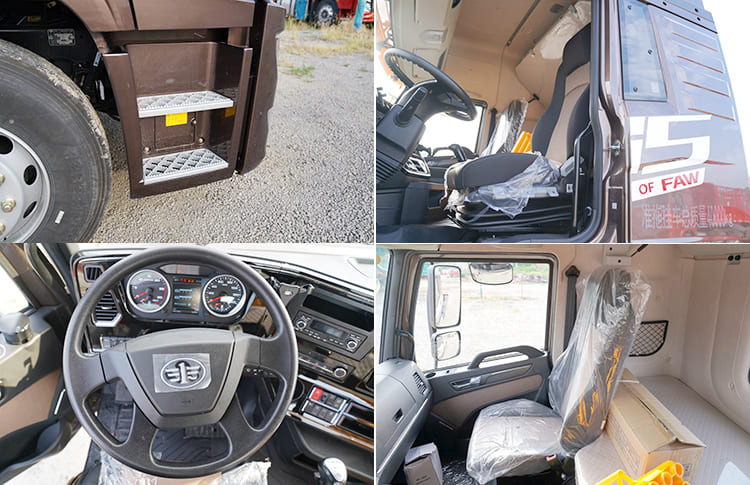

The cab of the faw jh5 460 head truck is also equipped with four-point airbags and airbag seats. The ride comfort，the cab of faw jh5 460 head truck has open storage boxes and storage boxes of various specifications in the center console, which can meet most needs.
Faw jh5 460 head truck is equipped with WP12.460E62 inline six-cylinder diesel engine, with a displacement of 11.6L, with a maximum output of 460 hp and a maximum torque of 2200 Nm in the 1000-1400 rpm range. It is paired with a 12-speed manual transmission of Fast 12JSDX220TA-B, Faw jh5 460 head truck equipped with overspeed gear and a top gear. And equipped with synchronizer and master box sliding gear sleeve, widely adapted to African road conditions and transportation scene needs.
Faw JH5 460 Head Truck | New Faw Trucks for Sale in Kenya
Faw JH5 460 Head Truck | New Faw Trucks for Sale in Kenya
Faw JH5 460 Head Truck | New Faw Trucks for Sale in Kenya
Faw JH5 460 Head Truck | New Faw Trucks for Sale in Kenya
Name: Faw JH5 460 6X4 Head Truck
Drive form: 6X4
Wheelbase: 3450+1350mm
Engine: Weichai WP12.460E62
Gearbox: Fast 12JSDX220TA-B
Rear axle ratio: 3.7
Overall Dimension(mm): 7030x2550x3510
Rear track: 1830/1830mm
Vehicle weight: 8.2 tons
Total mass: 25 tons
Total tow mass: 40 tons
Maximum speed: 89km/h
Engine
Engine model: Weichai WP12.460E62
Engine brand: Weichai
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 11.6L
Maximum horsepower: 460 horsepower
Maximum output power: 338kW
Maximum torque: 2200N m
Maximum torque speed: 1000-1400rpm
Rated speed: 1900rpm
Cab
Cab: High Roof
Cab Suspension: Four-point airbag suspension
Number of passengers allowed: 2
Seat row: half row
Gearbox
Gearbox model: Fast 12JSDX220TA-B
Shift mode: manual faw 460 truck
Forward gear: 12th gear
Number of reverse gears: 2
Chassis
Front axle allowable load: 7000kg
Rear axle allowable load: 18000 (two axles) kg
Speed ratio: 3.7 Faw 460 truck
Number of spring pieces: 2/3
Tire
Number of tires: 10
Tire specification: 12R22.5 18PR
