The 42000 liters aluminum fuel tanker is used for carrying different liquids like fuel, petrol, water, palm oil, etc.
To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safe, and also beneficial.
The volume of the aluminum semi trailer can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With the different compartments, like two, three, four, or more compartments, to load different liquid.

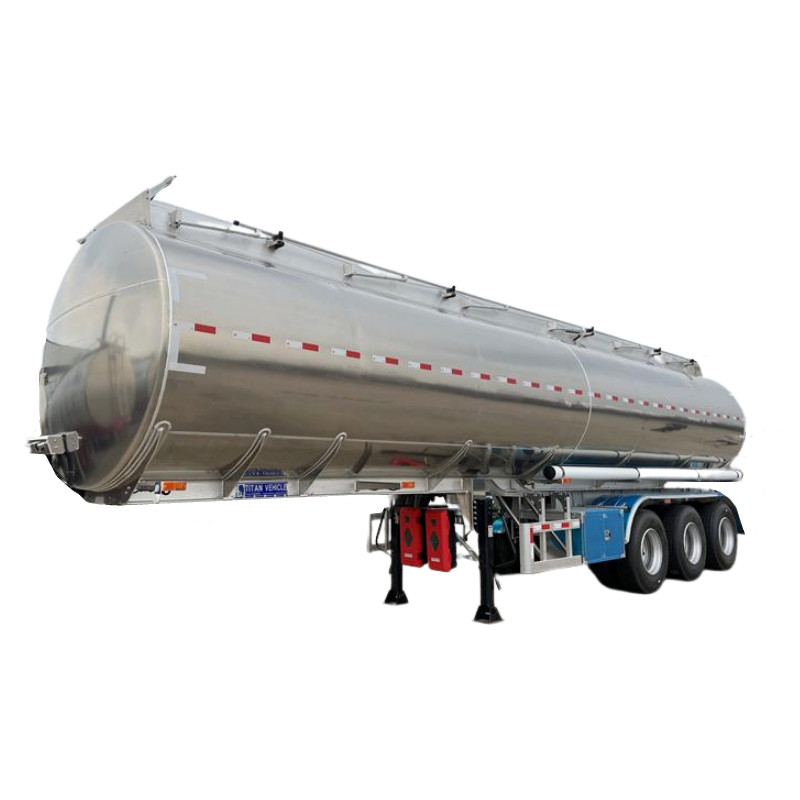

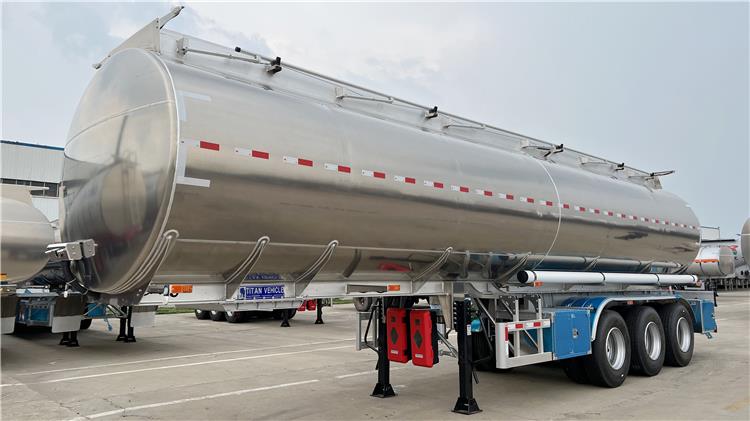

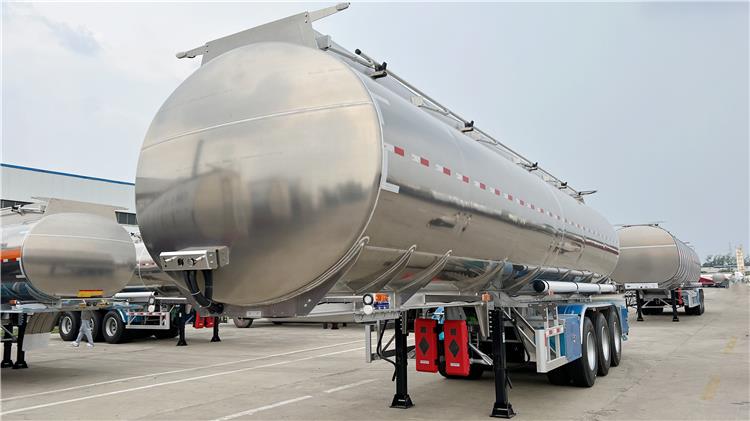

42000 Liters Aluminum Fuel Tanker Semi Trailer for Sale
42000 Liters Aluminum Fuel Tanker Semi Trailer for Sale

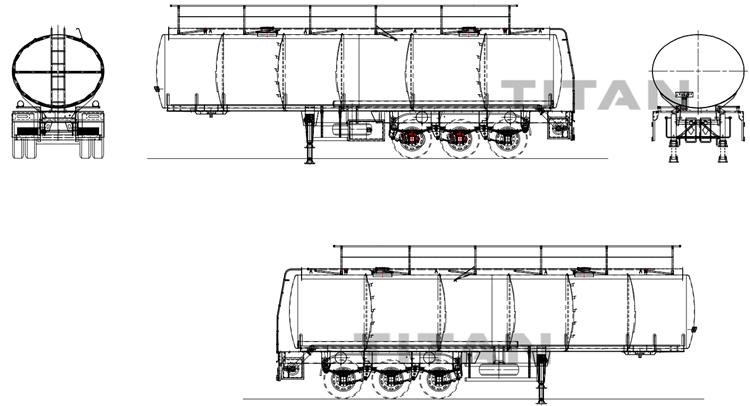

Dimension: 12000mmx2490mm x3990mm (the exact size depends on the final design.)
Total volume: 42000 liters
Tank Body Material: 5mm
End plate: 5mm
Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single Compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, FUWA brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

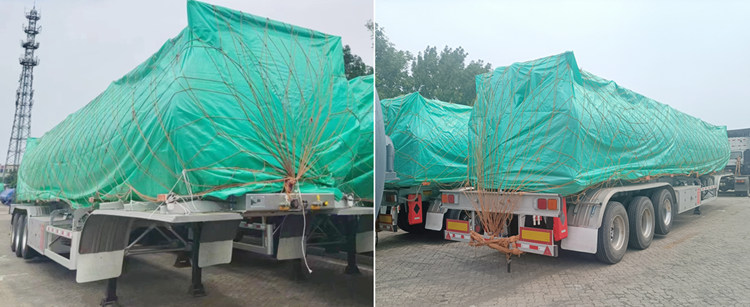

To prevent the paint of the 42000 liters aluminum tanker for sale from being corroded by seawater, we will spray a layer of wax on the surface of the aluminum tanker trailer before transportation. We will wrap all diesel engines of aluminum semi trailer with rain cloth.
