50000 liters tanker trailer as they are commonly called are vehicles with large tanks for transporting liquids. They are designed for specific safe shipping of various liquids. 4 axle oil tanker trailer for sale can be equipped with a pumping system for loading and off-loading liquids.
This plam oil tanker trailer could use typically two, three, four, five, and sometimes six compartments and are capable of transporting a variety of liquids, including fuels such as different gasoline grades, diesel, and industrial chemicals.

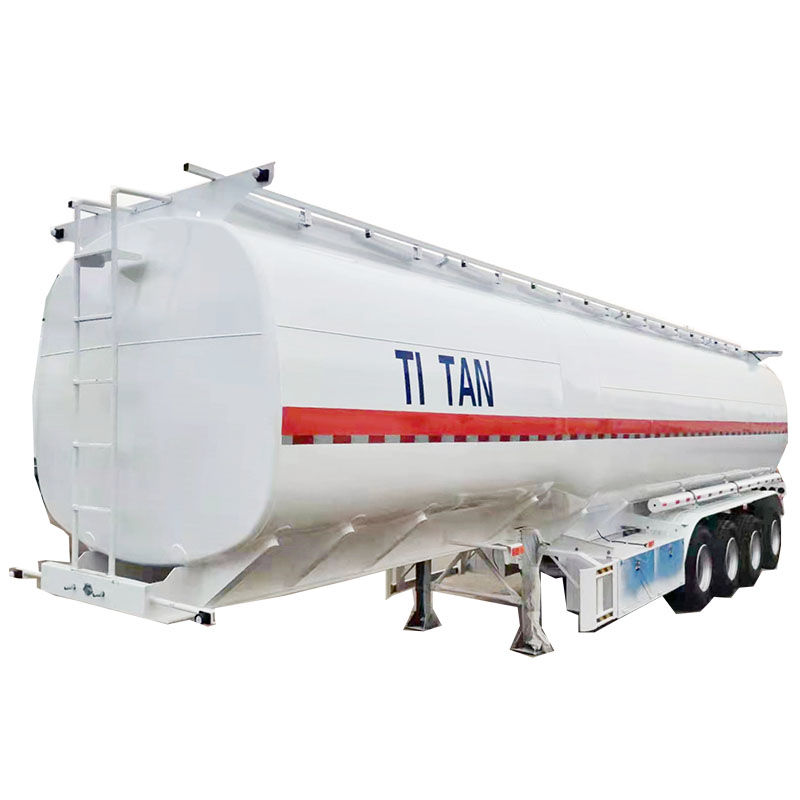

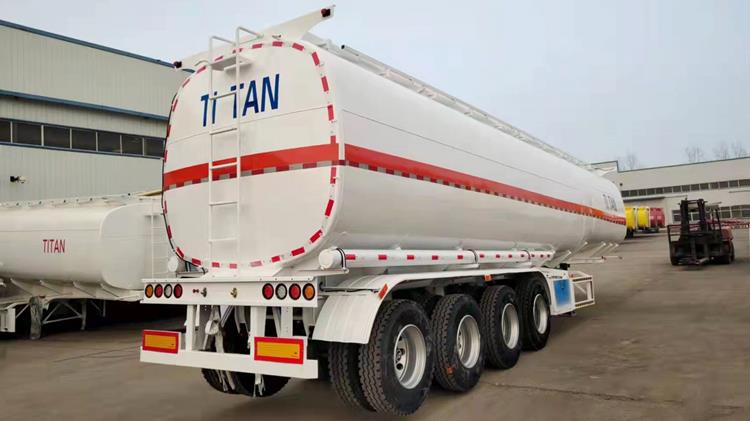

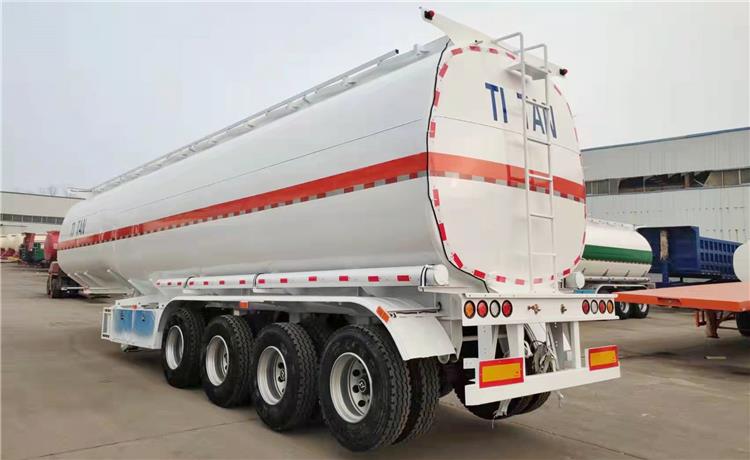

4 Axle 50000 Liters Plam Oil Tanker Trailer for Sale
4 Axle 50000 Liters Plam Oil Tanker Trailer for Sale
Dimension: 12000mm * 2500mm *3900mm
Total volume(L): 50000 liters tanker trailer
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 5 Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 4 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Tire: 12.00R22.5
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

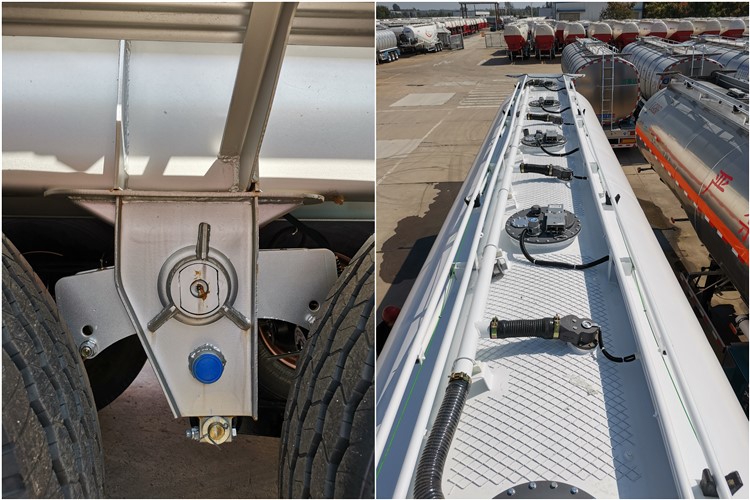

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The tanker body is longitudinally welded. Ensure the safety of the plam oil tanker trailer and increase the service life.
4. Water filled test equipment water tank: To ensure the high sealed of tank body and avoid the leaks oil.
