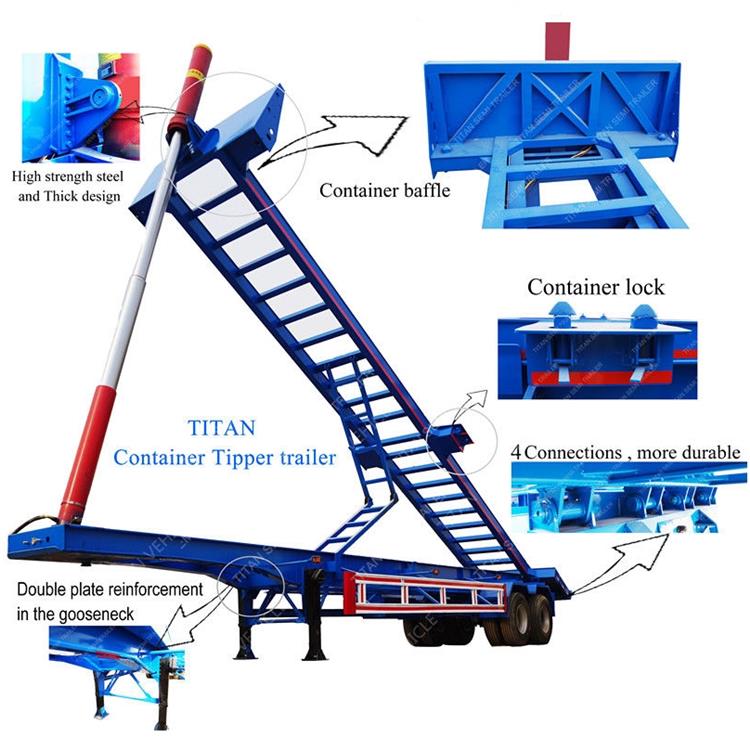

Container tipper trailer for sale adopts high strength steel, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability.

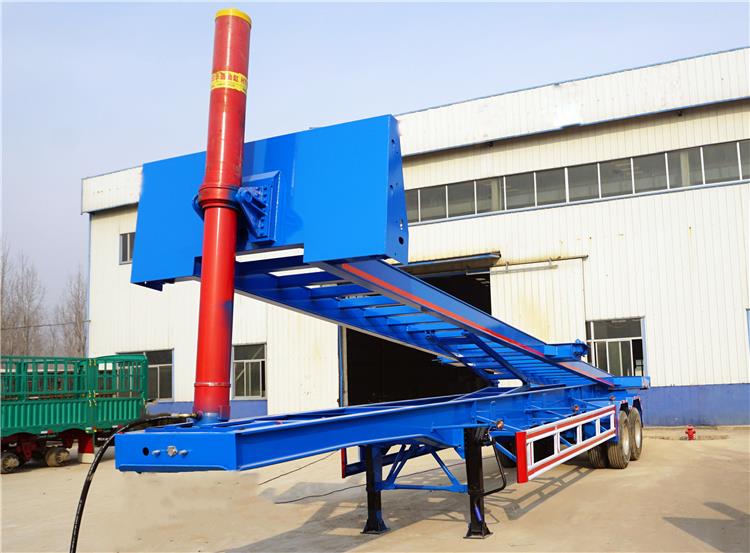

The 40 foot container tipper chassis trailer comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process.

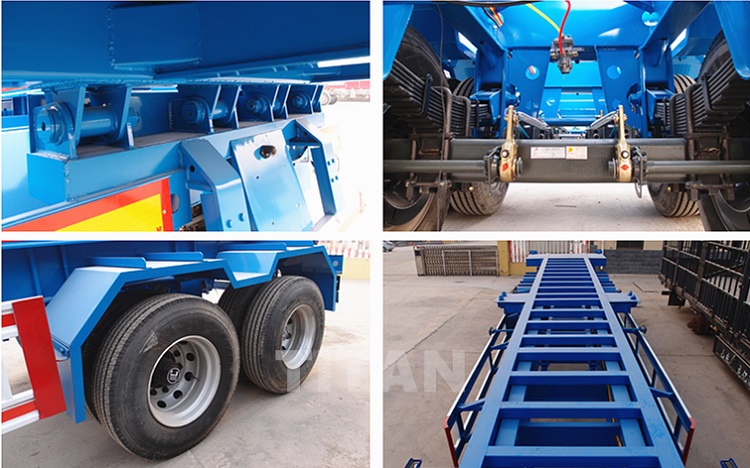

Container tipper trailer for sale adopts high strength steel, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. Main parts, especially the stress point, 40 foot container tipper chassis adopt the reinforced design.

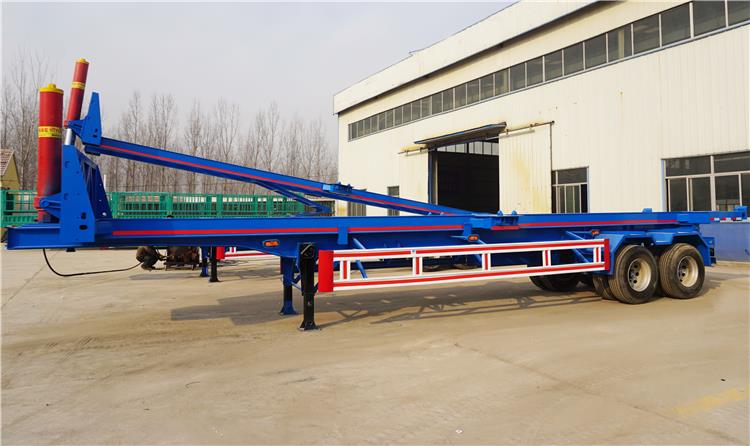

40 Foot Container Tipper Chassis Trailer for Sale
40 Foot Container Tipper Chassis Trailer for Sale
Overall dimension: 13000mm * 2500mm *2900mm
Loading capacity: 40T
Suspension：Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
