As semi tipper trailer for sale professional manufacturer, semi tipper trailer can be customized from 15 ton to 120 tons u shape rear tipper trailer of different tonnage according to the different cargoes.
As semi tipper trailer for sale professional manufacturer, semi tipper trailer can be customized from 15 ton to 120 tons u shape rear tipper trailer of different tonnage according to the different cargoes.
The volume of the u shape semi tipper trailer can be customized according to the needs of the customers. The common volumes are 30 cubic meters, 32 cubic meters, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters u shape rear tipper trailer for sale and so on.

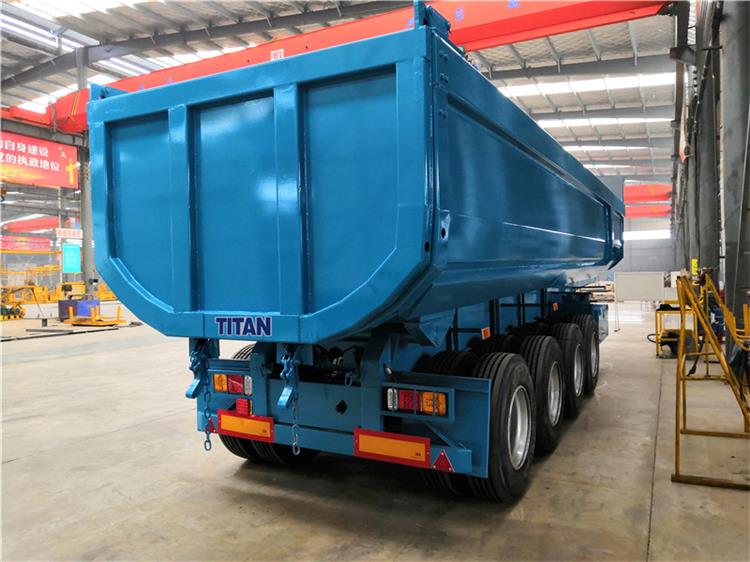

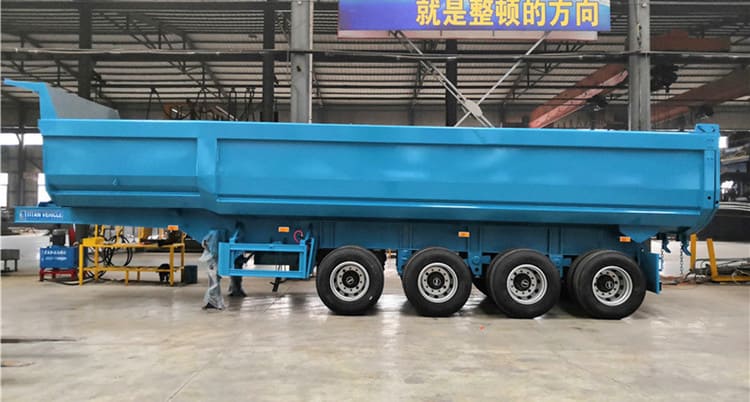

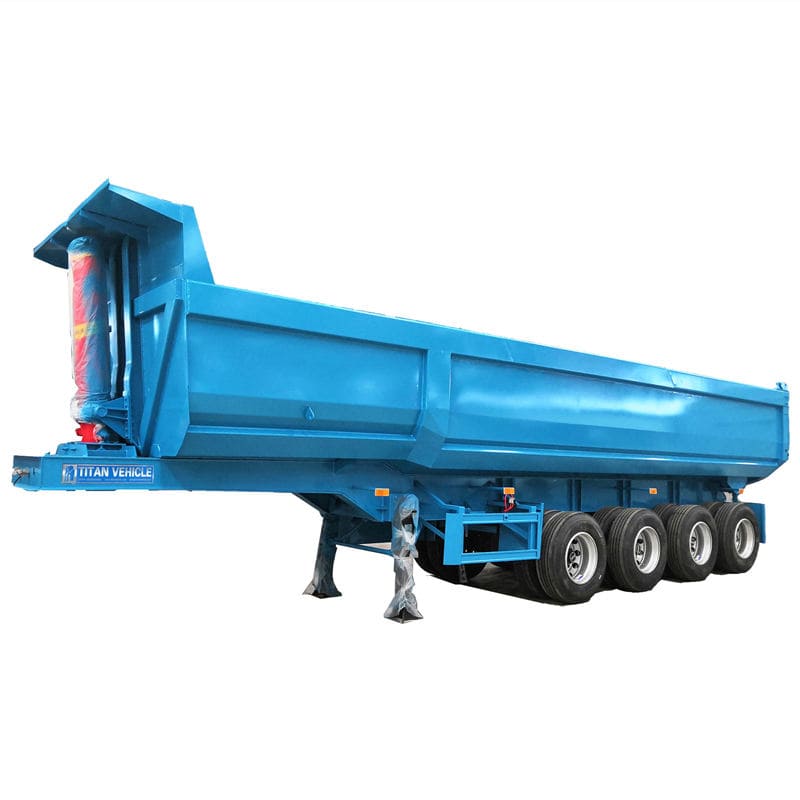

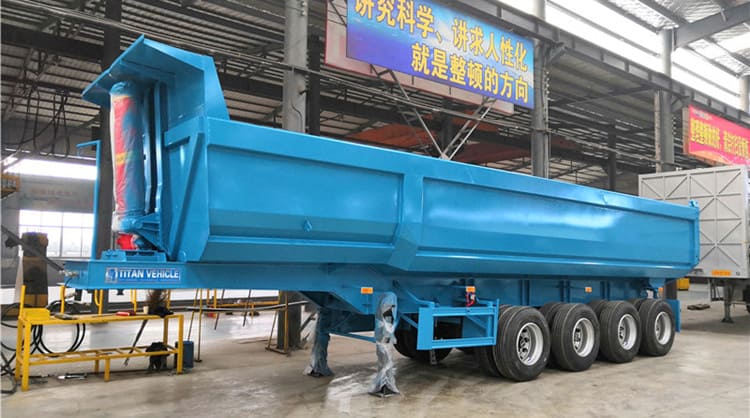

4 Axle U Shape Rear Semi Tipper Trailer for Sale
4 Axle U Shape Rear Semi Tipper Trailer for Sale
Dimension: 10000mmx2500mm x3500mm ( inside dimension )
Total volume(ton): 100 Ton
Side wall thickness: 4-6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 4 Axle, 16T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (especially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

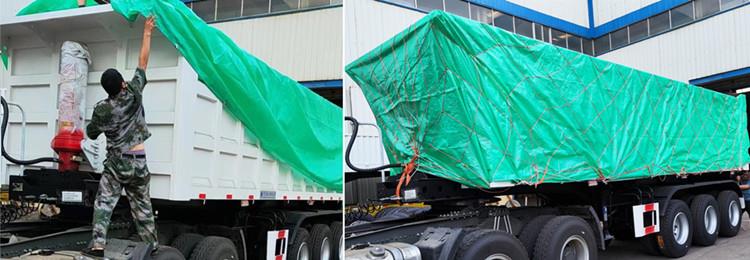

To prevent the tipper trailer for sale paint from being corroded by seawater, we spray a layer of wax on the surface of the u shape rear tipper trailer before shipping, and then seal it with a waterproof rain cloth. As a professional semi tipper trailer supplier, in the era of increasing efficiency, the delivery method we adopt is also an important reason to ensure a better customer experience. We recommend that customers choose container delivery. The reasons are as follows:
Simplify packaging and save a lot of packaging costs. Reduce cargo damage and inferior goods, and improve the quality of goods. Reduce operating expenses and transportation costs
