120 ton low bed trailer truck is highly useful and versatile machines that are designed to transport heavy equipment. Whether it’s a crane, excavator, or an enormous dump truck heading to a mining site, low bed trailer truck is the top pick for transportation.
The lower the platform height of the 4 axle low bed trailer, the better the stability and safety. Our low bed trailer manufacturers has a large carrying capacity when transporting extra high and medium cargo. We can customize the low bed trailer for you according to your needs.
4 Axle 120 Ton Low Bed Trailer Truck Manufacturers
4 Axle 120 Ton Low Bed Trailer Truck Manufacturers

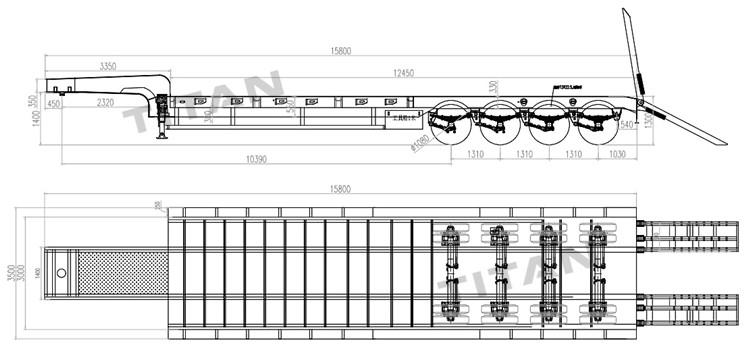

Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 120 ton low bed trailer truck
Axle: 4 axle low bed trailer
Rim: 8.0-20
Tire: 16 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
