120 ton low bed trailer for sale can be widened on both sides, So, the low bed truck can load more widen heavy machines, like the bulldozer, excavator, etc.
The height of the tires is lower than the working platform, which makes the height is lower than the normal low bed trailer truck. This lower low bed truck is easy to load or unload the heavy machines.

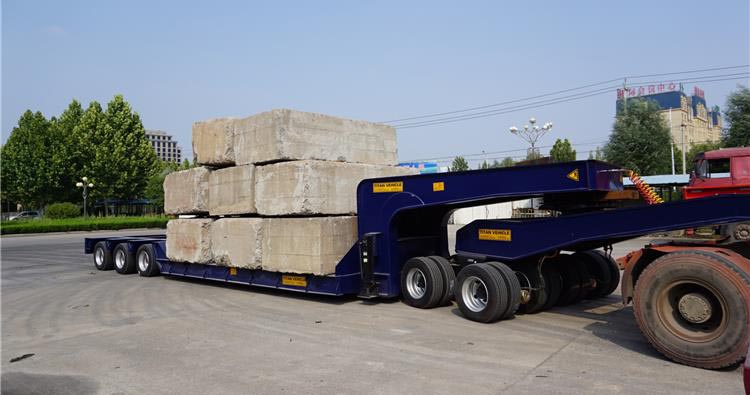

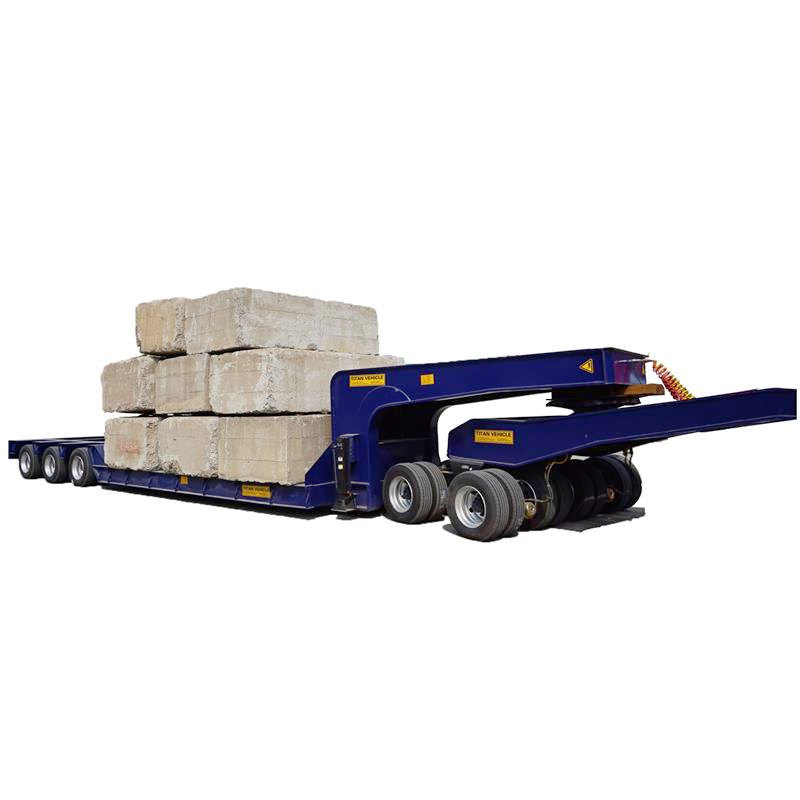

3 Line 6 Axle 120 Ton Low Bed Trailer Truck for Sale
3 Line 6 Axle 120 Ton Low Bed Trailer Truck for Sale
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 120 tons
Axle: 3 line 6 axle low bed trailer with 2 line 4 axle dolly
Rim: 8.0-20
Tire: 40 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
