The detachable neck lowboy trailer for sale is mainly separated or hooked by manually operating the hydraulic device mounted on the goose head, so as to reach the construction machinery from the front of the detachable neck trailer.
This kind of detachable lowboy trailer for sale is mainly suitable for the transportation of large construction machinery with small climbing ability. It solves the shortcomings of the current ladder slope angle is too large and poor passability existing in the rear loading and unloading of the lowbed trailer.

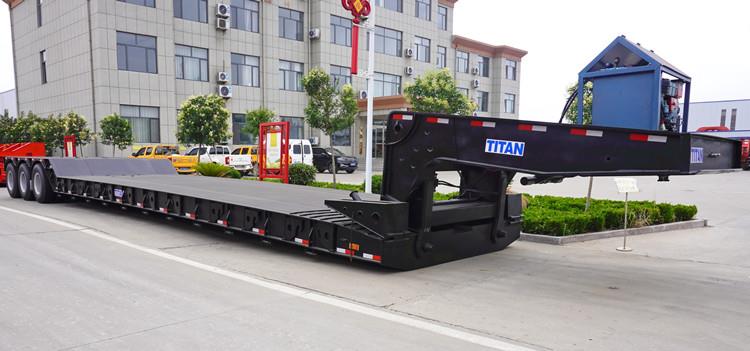

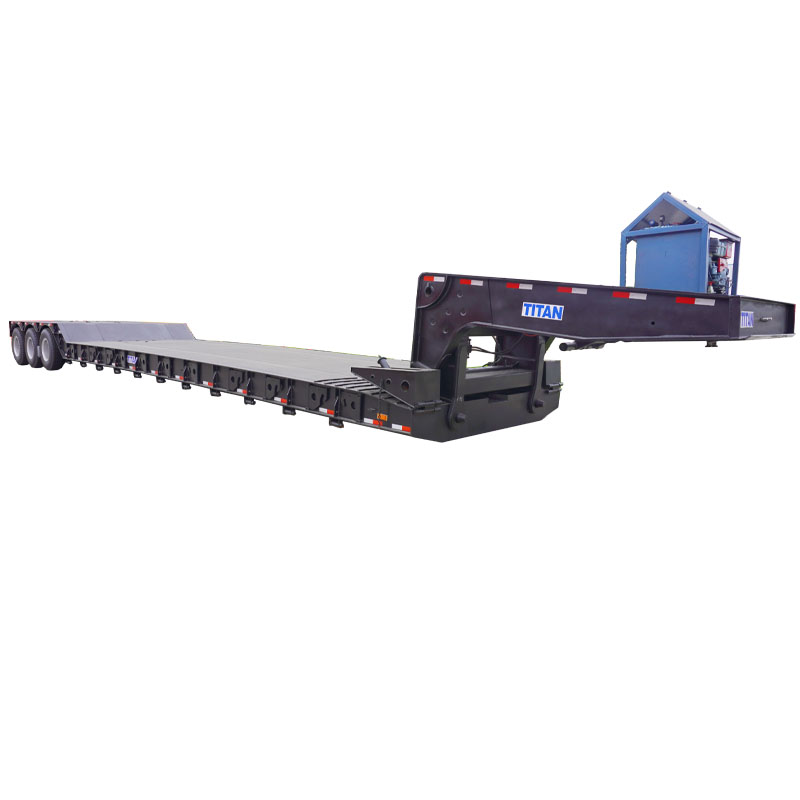

120 Ton Hydraulic Detachable Neck Lowboy Trailer for Sale
120 Ton Hydraulic Detachable Neck Lowboy Trailer for Sale

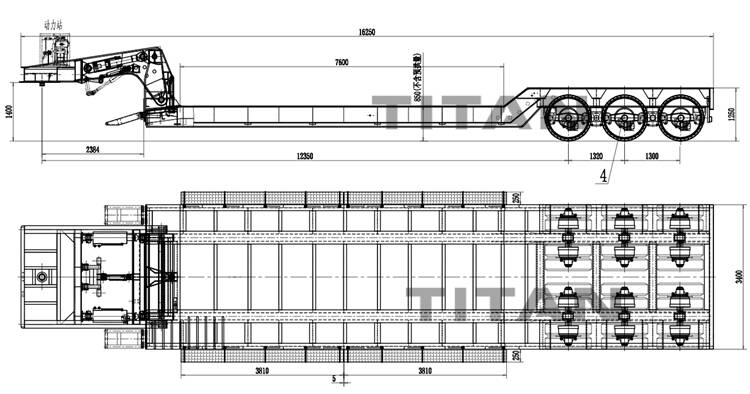

Dimension: 16250mm x 3400mm x 2500mm
Loading capacity(T): 120T

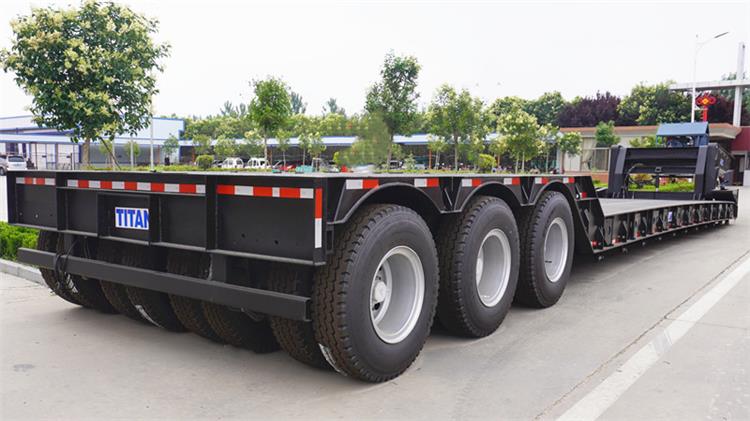

Axle: 3 lines 6 axles, 13T/16T, FUWA/BPW Brand
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

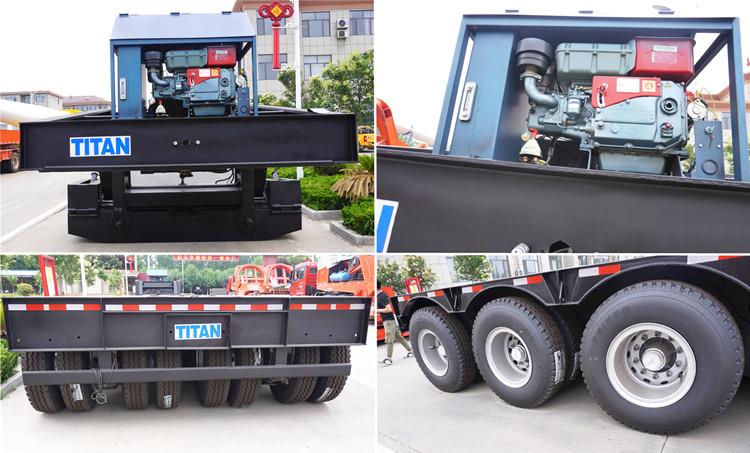

Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container
