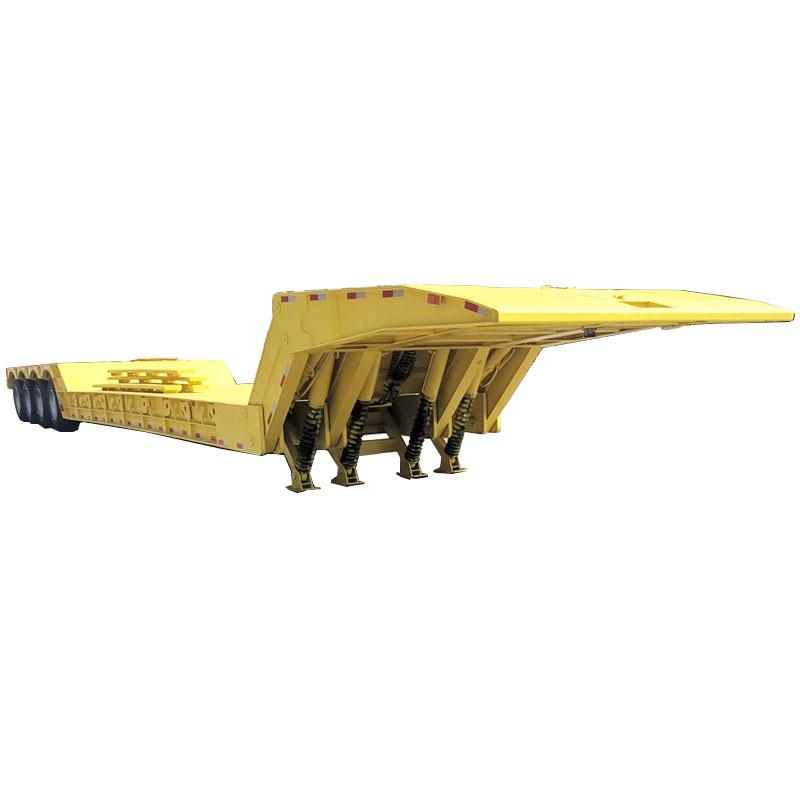

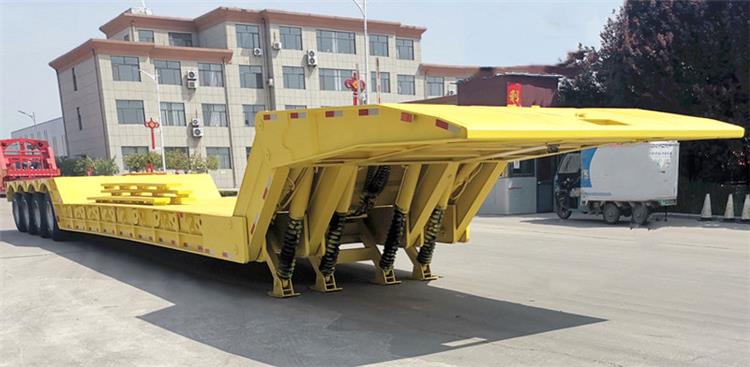

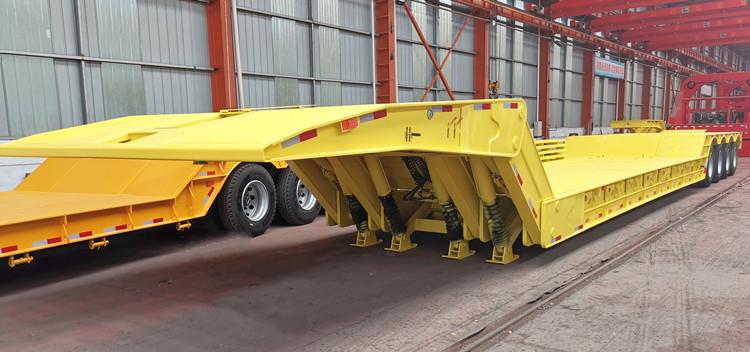

When unhooking from the prime mover, the folding gooseneck trailer for sale's neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.
When unhooking from the prime mover, the folding gooseneck trailer for sale’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.
The gooseneck of this 4 axle folding gooseneck lowboy trailer is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the folding gooseneck trailer for sale with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, it’s shallow and stable, could effective solutions for cargo loading.

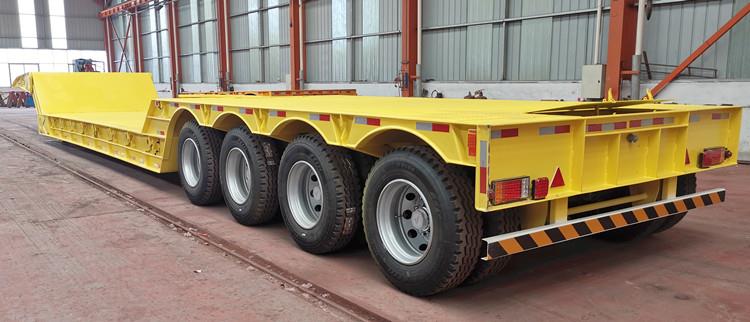

4 Axle 100 Ton Folding Gooseneck Trailer for Sale
4 Axle 100 Ton Folding Gooseneck Trailer for Sale
4 Axle 100 Ton Folding Gooseneck Trailer for Sale

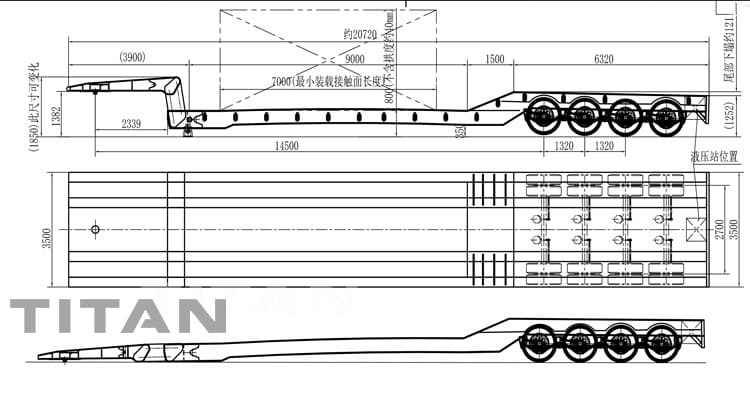

Dimension: 20720mm x 3500mm x 1850mm
Working platform: 9000*3500MM
Loading capacity: 100 TONS.4 AXLES,16TONS.
Gooseneck: hydraulic folding gooseneck.
Side hook for chain or belt
Checkered plate with 20 mm squre bar on ramps
Axle: 4 axle
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
