The 20ft container side loader trailer is only used to load 20ft containers, also can transfer containers to other trailers, trucks and trains or load other construction machinery. And with a high lifting capacity of 37 tons, it can satisfy you to handle different types of heavy loads. Since thecontainer trailer with crane is only 8 meters long, it is suitable for narrow road conditions.

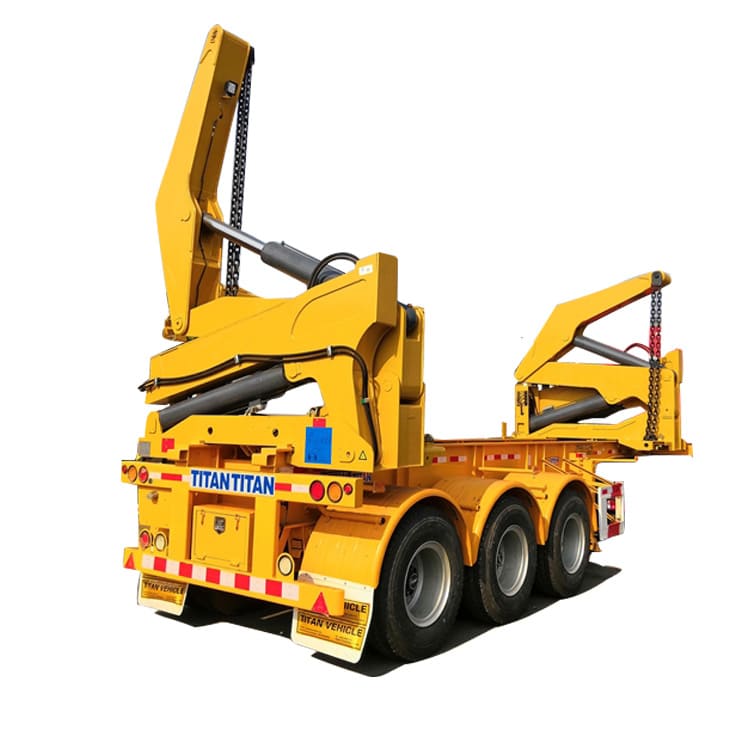

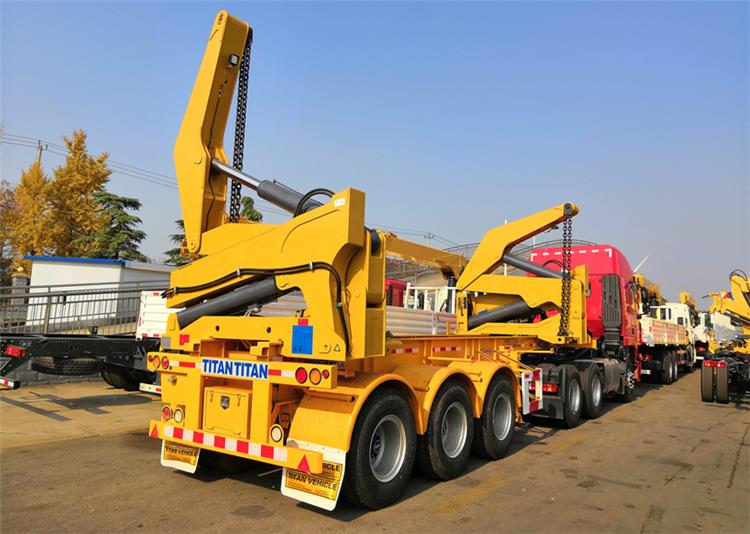

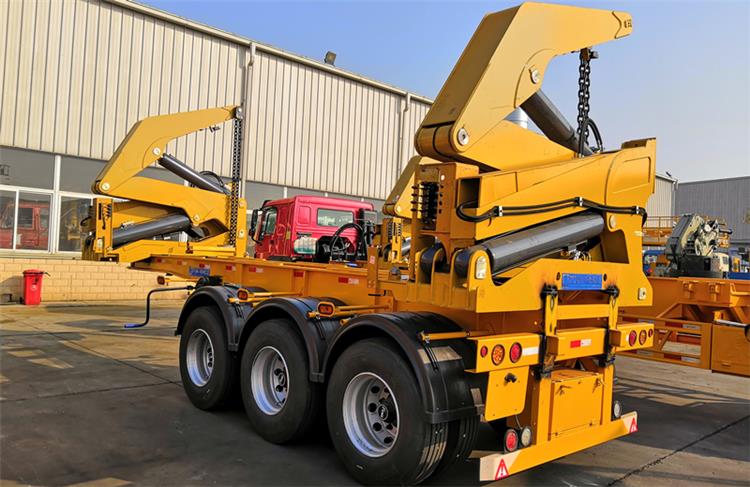

20ft Container Side Loader Trailer with Crane for Sale
Max. lifting capacity: 37 Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 8500x2500x4100mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
20ft container side loader for sale will pick up your loaded or empty ISO container, transport it on our air-ride tractor and container side loader trailer to where you want it to go, then set it down exactly where you want it set down, all without tilting or dropping your container.
We will double-stack containers on the ground, and/or place your container on top of another container.
