20ft container side lifter truck for sale is a type of specialized vehicle that is used to hoist and transport standard containers over long distances. Also known as a 20ft container self loader truck, this truck is basically used for container transfer.
The lift modules for the side lifter truck trailer are usually made of quality and proven high-tensile steel needed to provide enough strength capabilities.
They include outstanding features like the wide reach stabilizer jibs and leg controlled through a hydraulic unit that can either be powered from power take off (PTO) system of the tractor or from an Auxiliary Power Unit (APU)

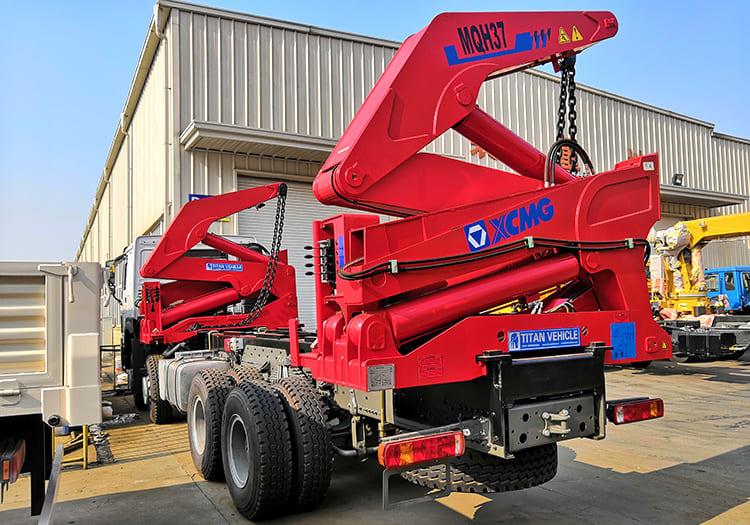

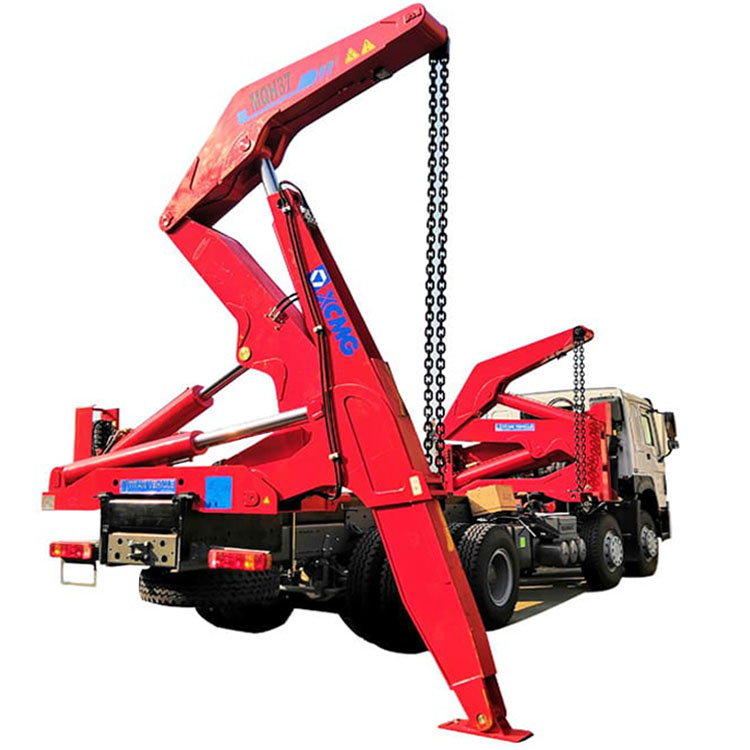

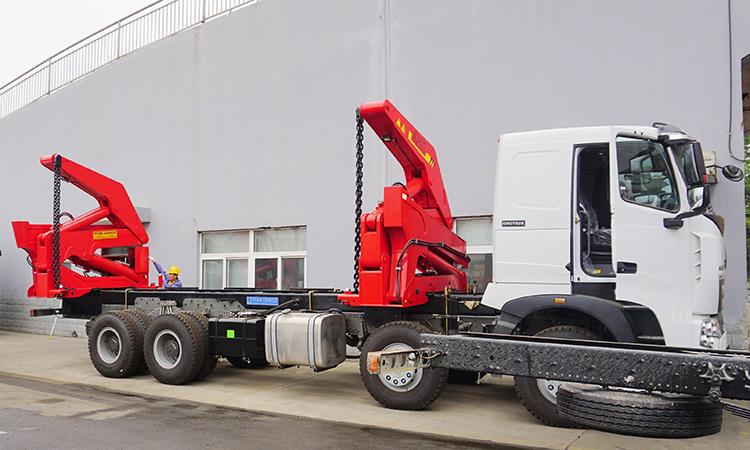

20Ft Container Self Loader Side Lifter Truck for Sale
20Ft Container Self Loader Side Lifter Truck for Sale
Max. lifting capacity: 37 Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max. pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 7500*2500*4200mm
Axle: 2axle* 13 ton (220mm brake pads)
Tire: 8pcs, 12R22.5
Suspension: Heavy duty type mechanical spring suspension
Kingpin: 3.5 inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
