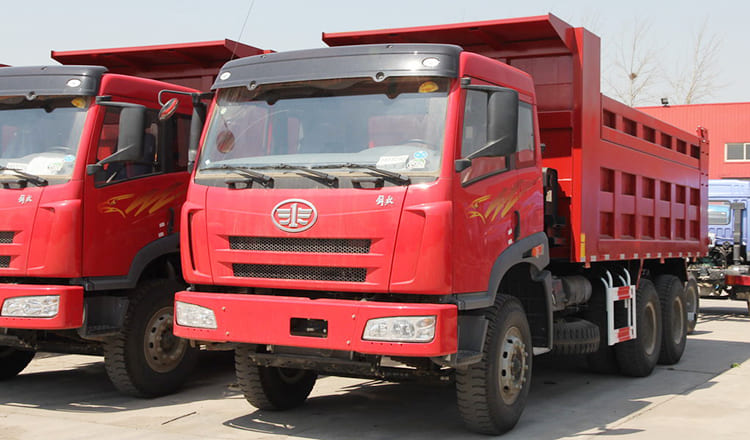

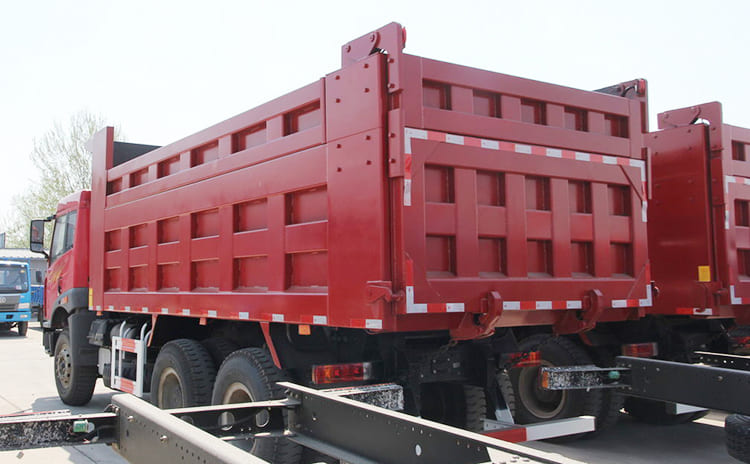

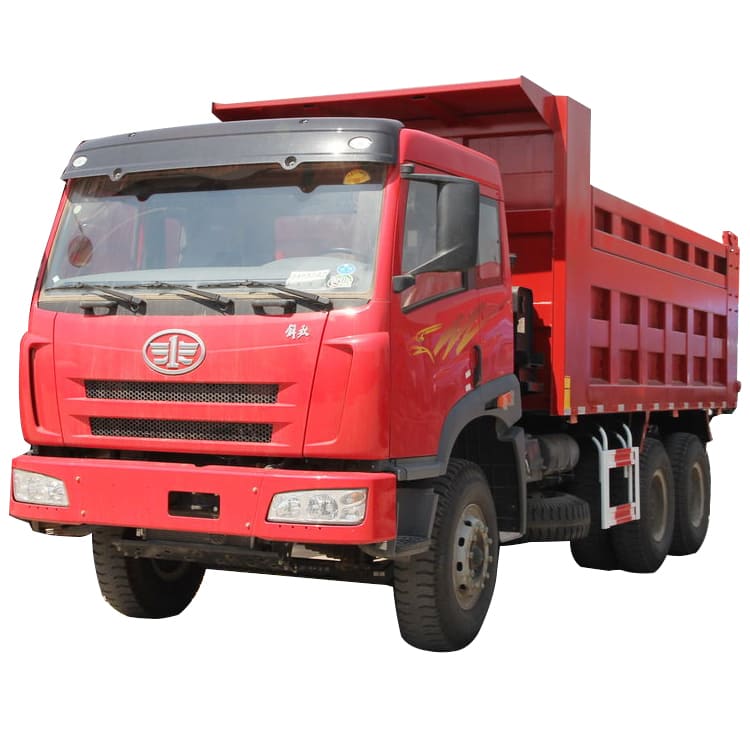

The faw j5p 280 6x4 dump truck adopts J5P cab, the engine adopts the high-efficiency and energy-saving diesel engine of Xichai, and the upper part of the carriage adopts high-strength steel plate instead of the original ordinary steel plate
The faw j5p 280 6x4 dump truck adopts J5P cab, and the engine adopts the high-efficiency and energy-saving diesel engine of Xichai. The upper part of the faw j5p 280 6x4 dump truck carriage adopts high-strength steel plate instead of the original ordinary steel plate.

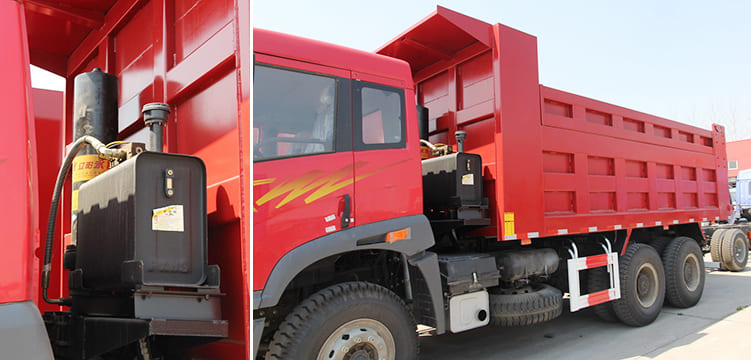

The weight of the whole faw j5p 280 6x4 dump truck is reduced by about 1.5 tons. The Faw 280 dump truck is within 5.5 tons and has the remarkable characteristics of high strength. The lifting mechanism is a front single-cylinder straight-top type and adopts Haichi hydraulic system, which has the advantages of simple and reliable, strong lifting ability and low failure rate.
Price of Faw Trucks in Kenya | Faw J5P 280 6x4 Dump Truck Faw China
Price of Faw Trucks in Kenya | Faw J5P 280 6x4 Dump Truck Faw China
Price of Faw Trucks in Kenya | Faw J5P 280 6x4 Dump Truck Faw China
Name:Faw J5P 280 6x4 Dump Truck
Drive form: 6X4
Wheelbase: 4800+1350mm
Overall Dimension(mm): 9500x2500x3500
Front track: 2020mm
Rear track: 1830/1830mm
Vehicle weight: 12.5 tons
Rated load: 12.4 tons
Total mass: 25 tons
Tonnage class: heavy truck
Approach angle: 25 degrees
Departure angle: 18 degrees
Engine
Engine model: Xichai CA6DL1-28E3
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 7.7L
Maximum horsepower: 280 horsepower
Maximum output power: 206kW
Maximum torque: 1100N m
Maximum torque speed: 1300-1700rpm
Rated speed: 2300rpm Faw 280 dump truck
Engine form: 6-cylinder in-line, direct injection, supercharged and intercooled, electronically controlled common rail
Cargo box
L*W*H(mm): 6500x2300x1000
Cargo box form: rear flip self-unloading
Gearbox
Gearbox model: FAW Jiefang CA10TA130M
Forward gear: 10th gear
Number of reverse gears: 2
Fuel tank
Fuel tank capacity: 400L
Chassis
Rear axle allowable load: 17975kg
Speed ratio: 5.769
Number of spring pieces: 11/12
Tire
Tire specification: 11.00-20 11.00R20 12.00-20 12.00R20
Number of tires: 10
