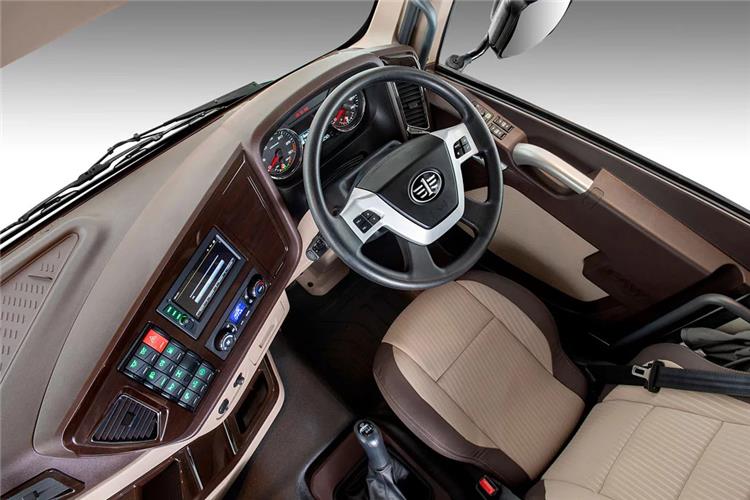

The newly designed and engineered Faw Jh6 420 hp truck head has a high-roof forward tilt cab with seating for the driver and a passenger. And air suspension seat for enhanced driver comfort with multi-dimensional adjustment ability.

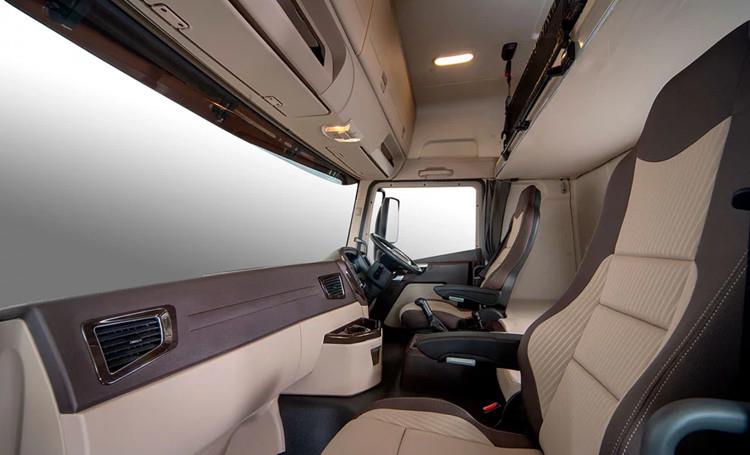

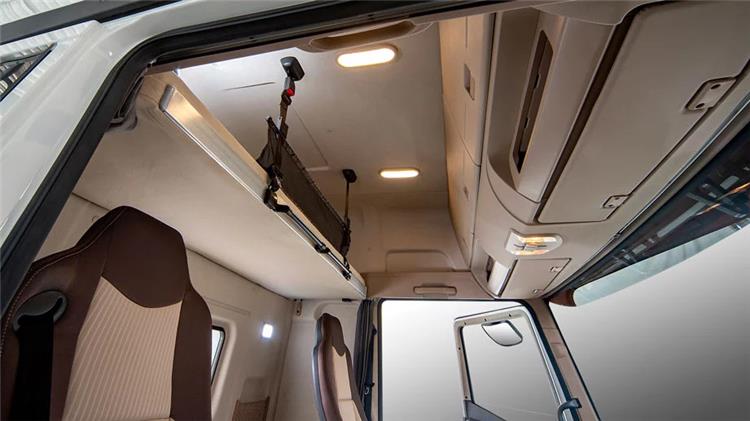

The newly designed and engineered Faw Jh6 420 hp truck head has a high-roof forward tilt cab with seating for the driver and a passenger. Faw 420 Jiefang truck head includes a double sleeper cab with air-conditioning and multi-functional radio with USB. And air suspension seat for enhanced driver comfort with multi-dimensional adjustment ability.
12-speed manual synchromesh gearbox is matched to a set of ratios specifically designed to provide optimum performance and fuel efficiency. Fitted with a Bosch manual injection pump is specifically made for African application.
Faw Trucks Price - Faw JH6 420 Jiefang Truck Head
Faw Trucks Price - Faw JH6 420 Jiefang Truck Head
Drive line: 6x4
Cab:
Cab Control: Forward Tilt Cab
Seating: Driver + 1 Passenger
Type/Extras: Sleeper Cab with Aircon, Radio with USB, Suspension seat
Engine:
Model: CA6DM2-42
Capacity: 11040 cm3
Emissions Standard: Euro ll
Power@r/min (kW): 312@1900rpm
Torque@r/min (Nm): 1900@ 1200-1400rpm
Dimensions:
Wheelbase (WB): 3300+1350mm
Overall Length (OL): 6938mm
Cab Length (A): 2295mm
Overall Width (OW): 2500mm
Overall Height (OH): 3550mm
Cab to Rear Axle (CA): 3850mm
Minimum Turning Radius: 7500mm
Minimum Turning Diameter: 13000mm
Ground Clearance: 295mm
Transmission: FAST C12JSDQXL200
Clutch:
Diameter: 430 mm
Type: Single Plate
Operation: Hydraulic-Air Assisted
Steering:
Gear Ratio: 23:1
Type: Recirculating Ball
Operation: Power Assisted
Brakes:
System Type: Full Air - Dual Circuit with ABS
Park/Emergency System: Spring Brake/Rear Booster
Auxiliary Braking: Engine brake and exhaust brake
Fuel Tank:
Number: Two
Total Capacity: 450+450 Litre
Wheels:
Tyre Size: 315/80R22.5-18
Rim Size: 9.00 X 22.5
Type: Tubeless Radial
