Faw j6p 8x4 tipper prices has high-strength longitudinal beams improve frame rigidity and stable lifting; the entire wheel base, leaf spring distance, and frame outer width are the largest in the industry, faw j6p 8x4 tipper prices greatly improving anti-rolling ability, smoother turning and faster vehicle speed
According to the road conditions, the newly designed cab suspension of Faw j6p 8x4 tipper prices is adopted. When the Faw j6p 8x4 tipper prices is driving on a "good road", the cab is "softer" and more comfortable; when driving on a "bad road", The cab of the Faw j6p 8x4 tipper prices can provide greater "support force" ”, to increase the driving speed and improve the transportation efficiency.

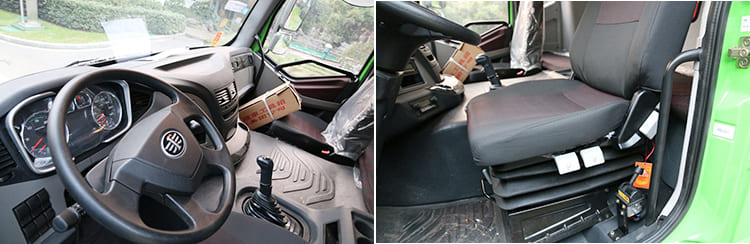

Faw j6p 8x4 tipper prices adpopts the one-piece overhead box design on the top increases headroom and front row passability; the interior panel shape is closer to the body, providing users with more space for driving, living and storage.
Faw J6P 8X4 | Faw Tipper Prices for Sale in Senegal
Faw J6P 8X4 | Faw Tipper Prices for Sale in Senegal
Faw J6P 8X4 | Faw Tipper Prices for Sale in Senegal
Faw J6P 8X4 | Faw Tipper Prices for Sale in Senegal
Name: Faw J6P 8X4 Tipper Prices
Drive form: 8X4 faw tipper for sale
Wheelbase: 1900+2250+1350mm
Faw tipper for Sale Overall Dimension(mm): 8745x2500x3400
Front Track: 2020/2020mm
Rear Track: 1847/1847mm
Vehicle weight: 15.5 tons
Rated load: 15.305 tons
Total mass: 31 tons
Tonnage class: heavy truck
Approach angle: 24 degrees
Departure angle: 22 degrees
Engine
Engine model: Xichai CA6DL2-35E5
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 8.57L
Maximum horsepower: 350 horsepower
Maximum output power: 261kW
Maximum torque: 1500N m
Maximum torque speed: 1300-1470rpm
Rated speed: 2100rpm
Engine form: inline, four-stroke, water-cooled, four-valve, supercharged and intercooled
Cargo box
L*W*H(mm): 6000x2300x1330
Cargo box form: self-unloading
Gearbox
Gearbox model: FAW Jiefang CA12TAX160M
Forward gear: 12th gear
Number of reverse gears: 2
Chassis
Frame size: 300×80×(8+5)mm
Rear axle description: Axle Ф300 cast iron improved wheel reduction axle
Rear axle allowable load: 18000 (with dual axles) kg
Speed ratio: 5.263

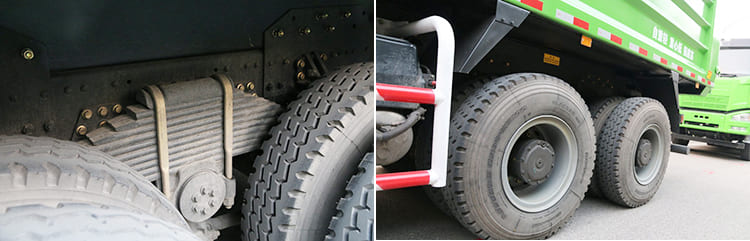

Number of leaf springs: 9/9/10
Tire
Tire specification: 11.00R20
Number of tires: 12
